MT Gear Shift Lever: Assembly

NOTE:

Clean all the parts before assembly.
Apply NIGTIGHT LTS No. 2 grease or equivalent to each part. Refer to CONTROL SYSTEMS>GENERAL DESCRIPTION>COMPONENT>6MT GEAR SHIFT LEVER (STI MODEL) .

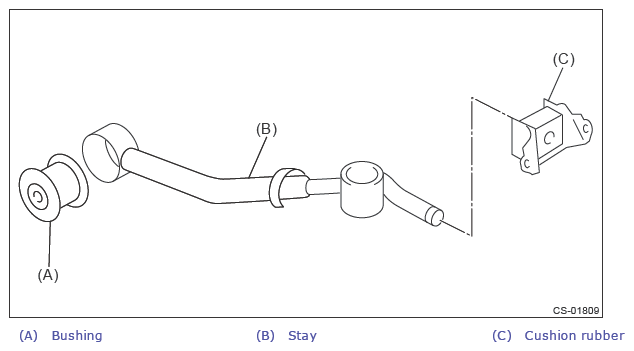

Mount the bushing and cushion rubber to the stay.

Courtesy of SUBARU OF AMERICA, INC.

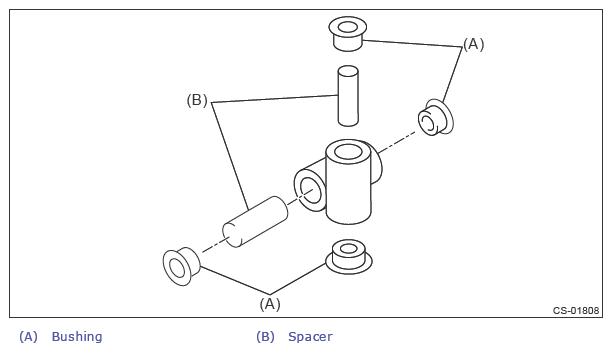

Install the bushing and spacer to boss.

Courtesy of SUBARU OF AMERICA, INC.

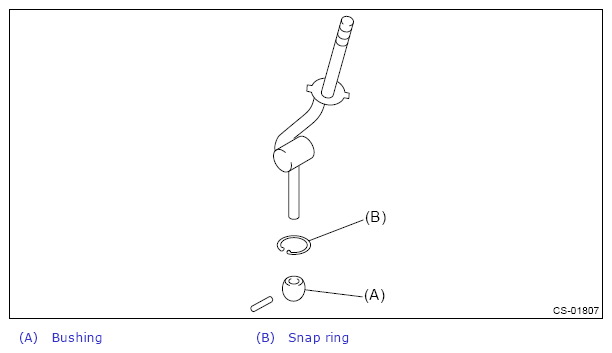

Install the snap ring and install the bushing.
NOTE: Apply grease to the bushing.

Courtesy of SUBARU OF AMERICA, INC.

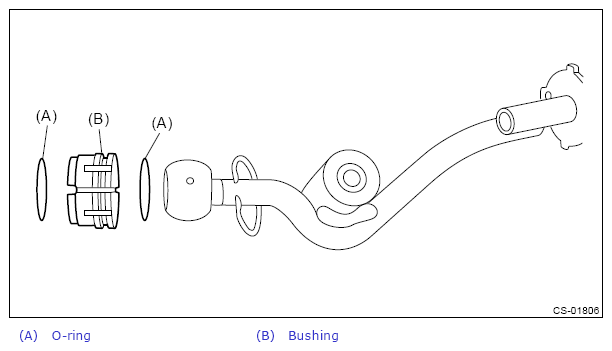

Apply grease to the bushing and O-ring, and then install to gear shift lever.

Courtesy of SUBARU OF AMERICA, INC.

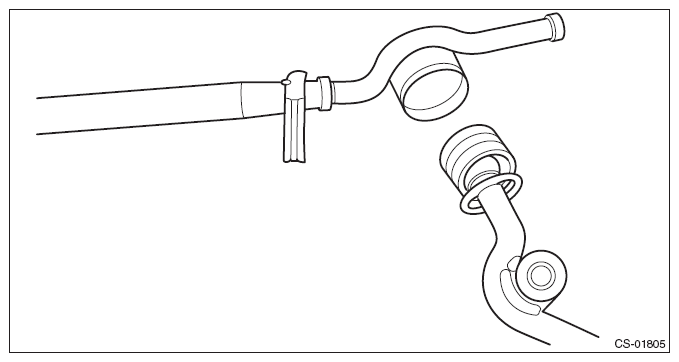

Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Courtesy of SUBARU OF AMERICA, INC.

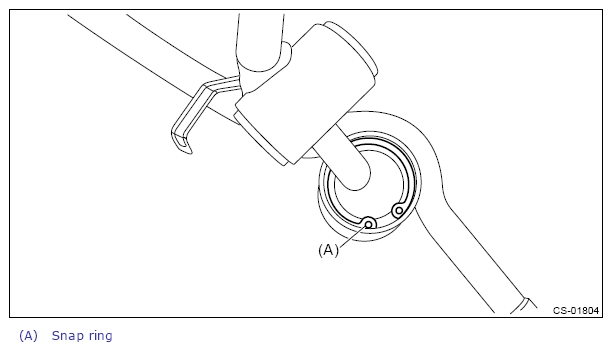

Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

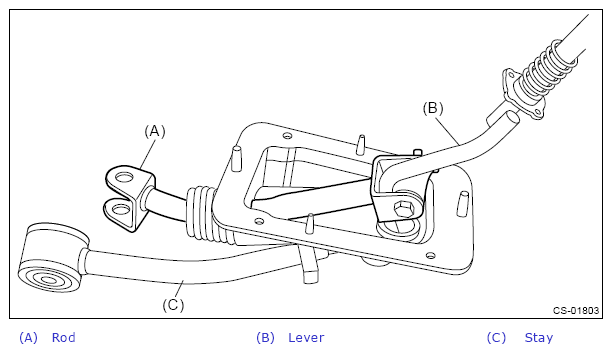

Insert the gear shift lever and rod into boot hole.
Install the rod.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

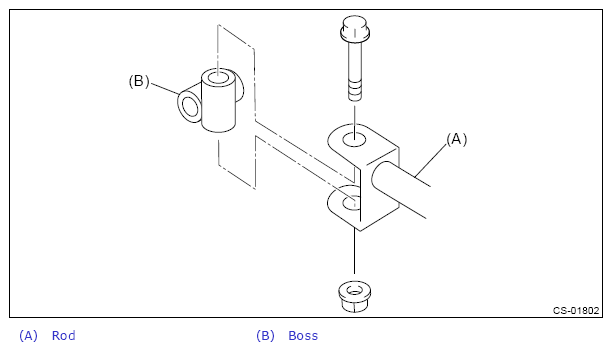

Install the boss to the rod.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

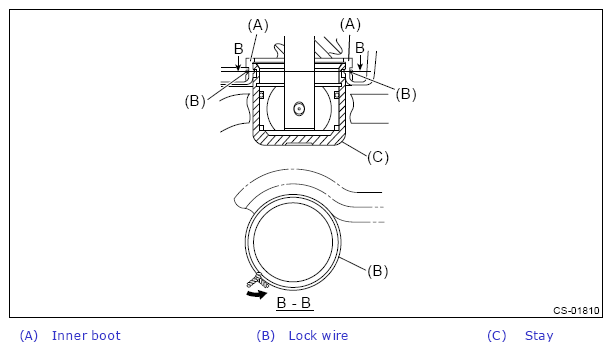

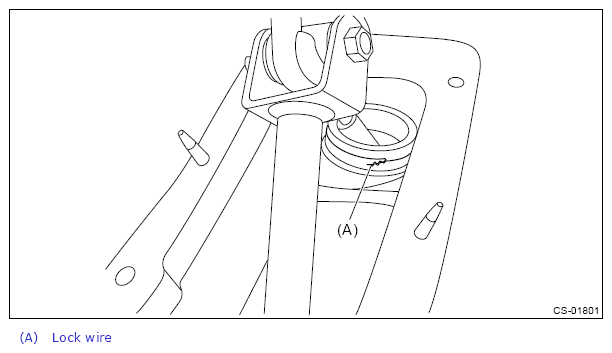

Install a new lock wire.

Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Install the lock wire to the stay groove.
- Bend the extra wire to the same direction of lock wire winding.
Courtesy of SUBARU OF AMERICA, INC.

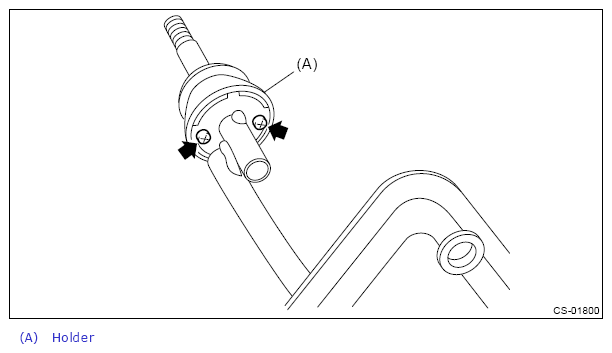

Install the holder.
Tightening torque:

1.3 N.m (0.1 kgf-m, 1.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Insert the reverse check cable into the boot hole.
Insert the reverse check cable into the gear shift assembly, and fix in place with a band clip.
NOTE:
- Cut the excess band clip.
- Make sure that the reverse check cable is inserted into the gearshift lever assembly with no gaps.
Courtesy of SUBARU OF AMERICA, INC.

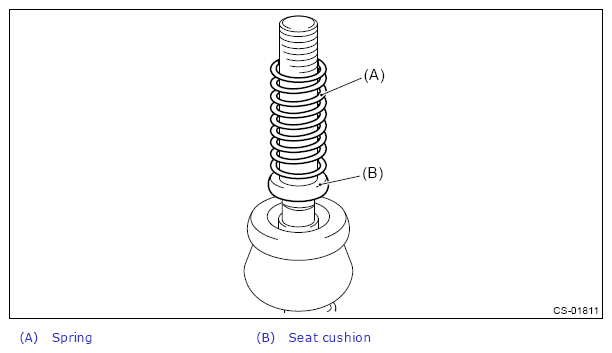

Install the seat cushion and spring.

Courtesy of SUBARU OF AMERICA, INC.

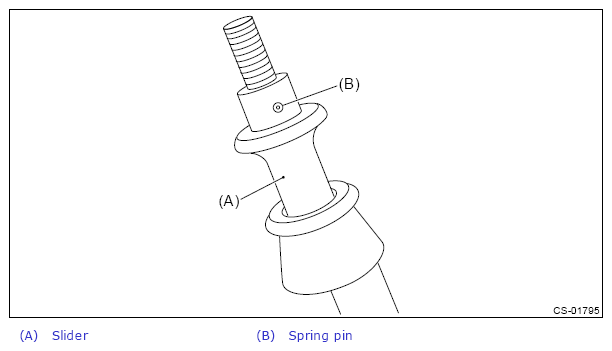

Use the spring pin to secure the end of the slider and reverse check cable.
NOTE: Apply grease to the moving part of slider.

Courtesy of SUBARU OF AMERICA, INC.

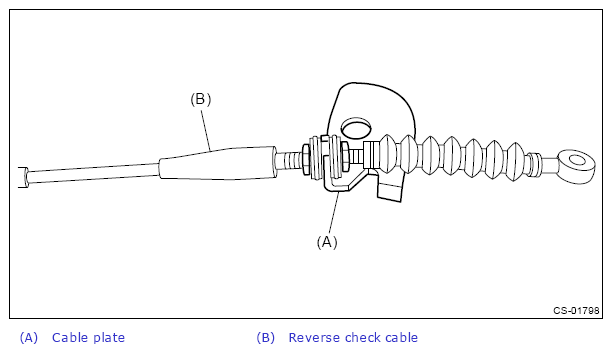

Install the reverse check cable to the cable plate, and tighten the lock nut.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

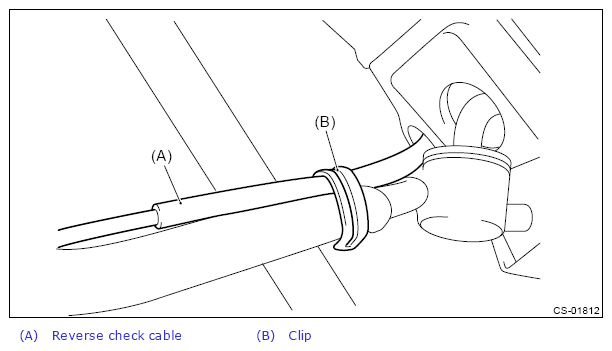

Secure the reverse check cable to the stay clip.
NOTE: Install the reverse check cable on top of the stay.

Courtesy of SUBARU OF AMERICA, INC.
