MT Gear Shift Lever: Disassembly

NOTE: Disassemble procedures are only for STI model.

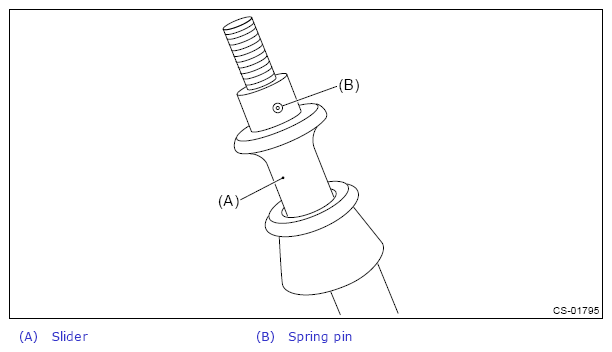

Remove the spring pin from the slider.

Courtesy of SUBARU OF AMERICA, INC.

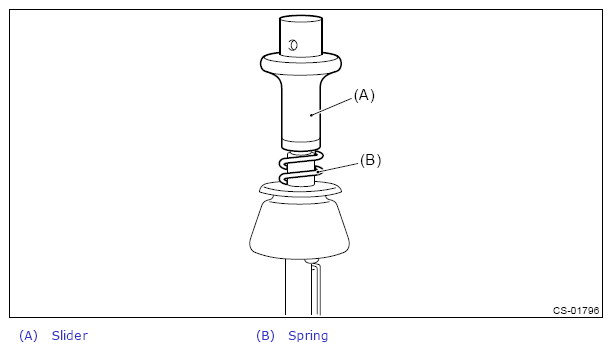

Remove the slider and spring.

Courtesy of SUBARU OF AMERICA, INC.
Cut off the band clip.

Courtesy of SUBARU OF AMERICA, INC.

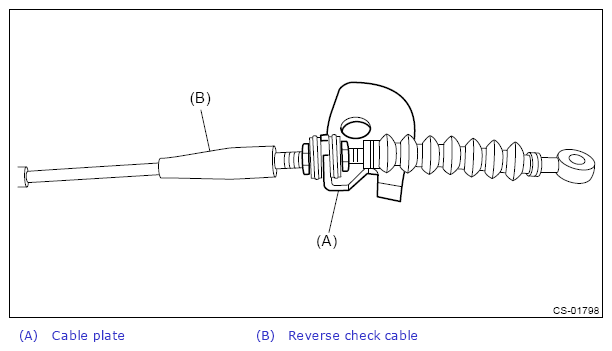

Remove the reverse check cable from the cable plate.

Courtesy of SUBARU OF AMERICA, INC.

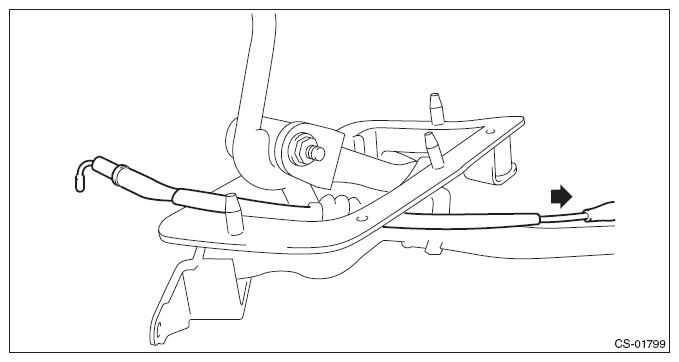

Remove the reverse check cable.

Courtesy of SUBARU OF AMERICA, INC.

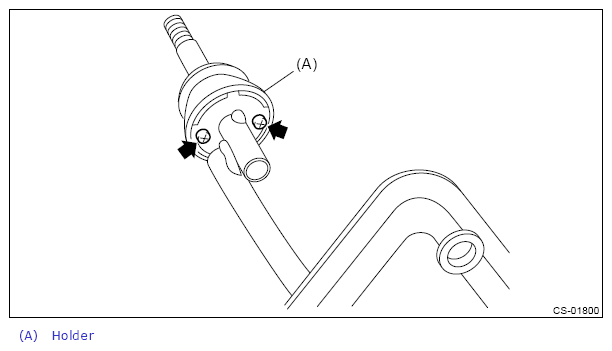

Remove the holder and spring.

Courtesy of SUBARU OF AMERICA, INC.

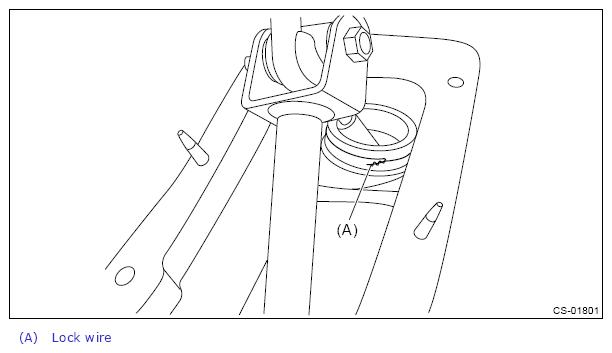

Disassemble the lock wire.
NOTE: Do not reuse the lock wire.

Courtesy of SUBARU OF AMERICA, INC.

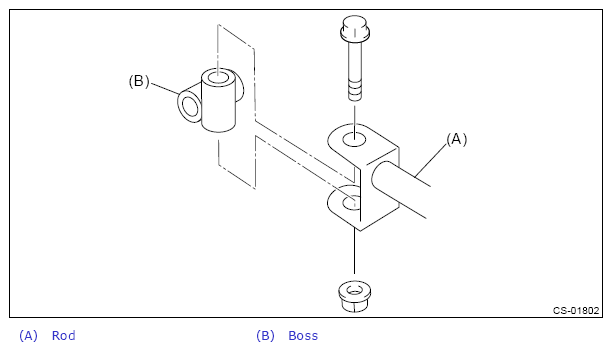

Remove the boss from the rod.

Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.

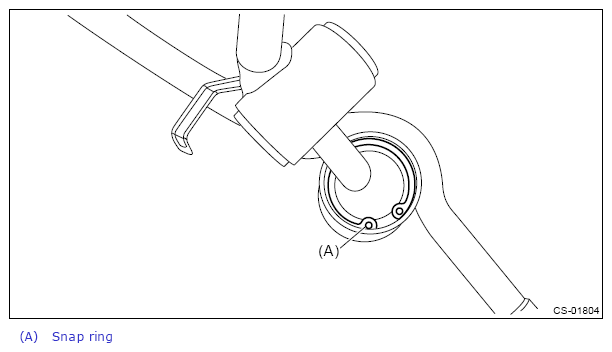

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

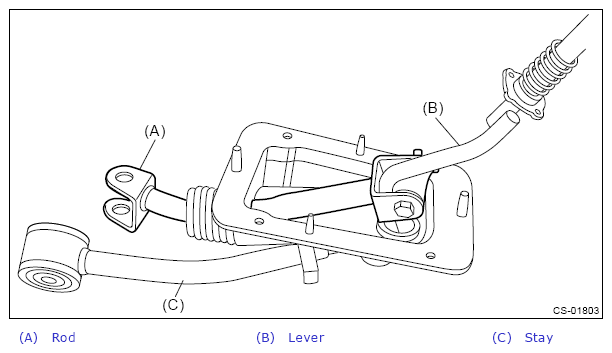

Separate the gear shift lever and the stay.

Courtesy of SUBARU OF AMERICA, INC.

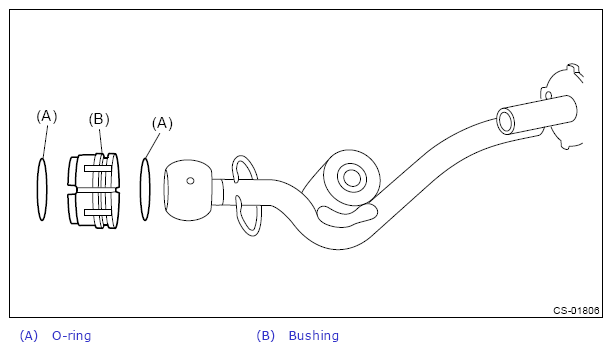

Remove the O-ring and bushing.

Courtesy of SUBARU OF AMERICA, INC.

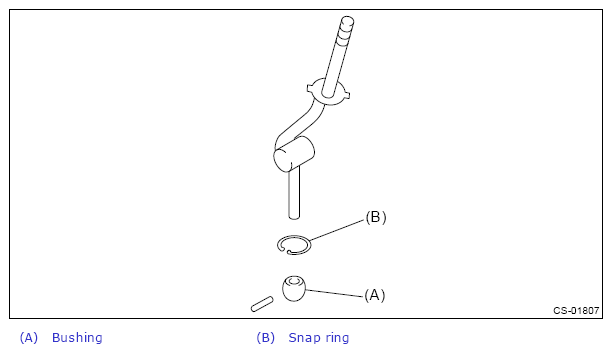

Remove the spring pin, and then remove the bushing and snap ring.

Courtesy of SUBARU OF AMERICA, INC.

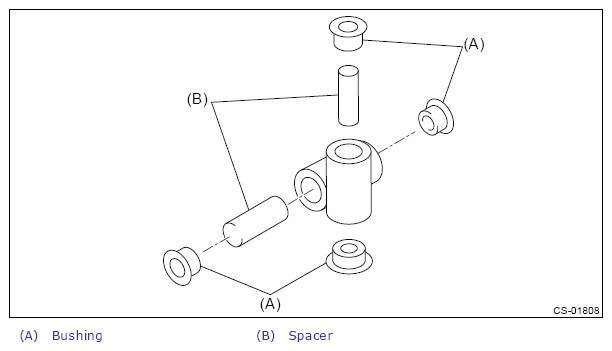

Remove the bushing and spacer from the boss.

Courtesy of SUBARU OF AMERICA, INC.

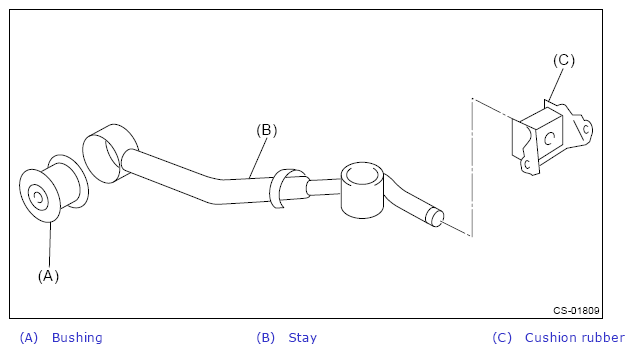

Remove the bushing and cushion rubber from the stay.

Courtesy of SUBARU OF AMERICA, INC.
