STI Model

  1. Insert the gear shift lever from the bottom of the vehicle.
    NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.
  2. Install the cushion rubber.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  3. Move the transmission to the right side of the vehicle, and install the joint COMPL and stay.

    Tightening torque:

    T1: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

    T2: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

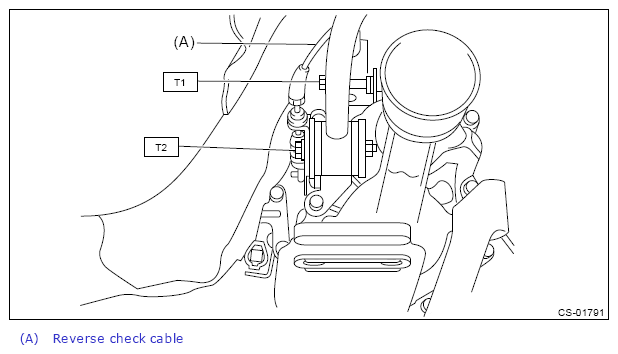

    Fig 1: Reverse Check Cable, Joint Compl And Stay Bolts (With Torque Specification) (STI Model)
    G13646828Courtesy of SUBARU OF AMERICA, INC.
  4. Install the reverse check cable, washer and snap pin.
    NOTE: Pay attention to the installing direction of the snap ring.

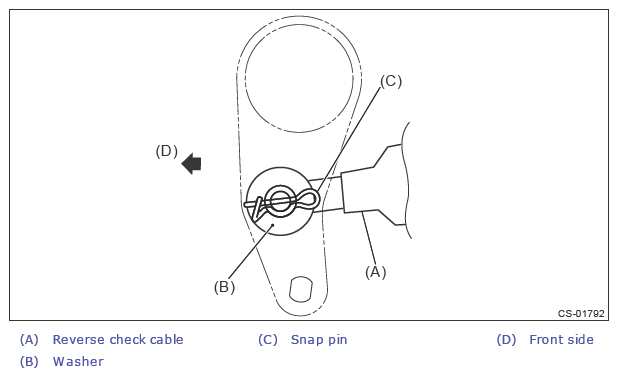

    G13646829Courtesy of SUBARU OF AMERICA, INC.
  5. Make sure the hole of extension case is aligned with that of reverse check lever. If the hole positions are not aligned, adjust the reverse check cable. Refer to CONTROL SYSTEMS>REVERSE CHECK CABLE>ADJUSTMENT .
    NOTE:
    • Check that the M3 bolt goes through the hole of reverse check lever and can be inserted into the hole of extension case.
    • When checking visually, confirm that the gap of hole positions is 0.5 mm (0.02 in) or less.

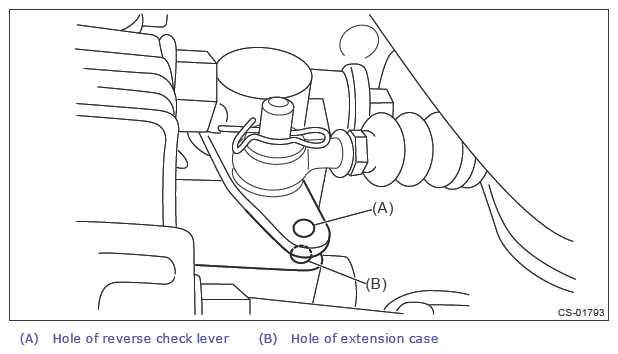

    G13646830Courtesy of SUBARU OF AMERICA, INC.
  6. Install the crossmember. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>TRANSMISSION MOUNTING SYSTEM>INSTALLATION .
  7. Install the center exhaust cover.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  8. Install the center exhaust pipe (rear). Refer to EXHAUST(STI)>CENTER EXHAUST PIPE>INSTALLATION .
  9. Install the plate COMPL.
    NOTE: Be careful not to twist the inner boot when installing.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    1. Set the plate COMPL to the vehicle.
    2. Temporarily tighten the bolt (A).
    3. Tighten the bolt (B).
    4. Tighten the bolt (A).
    5. Tighten the bolts (C) and (D).

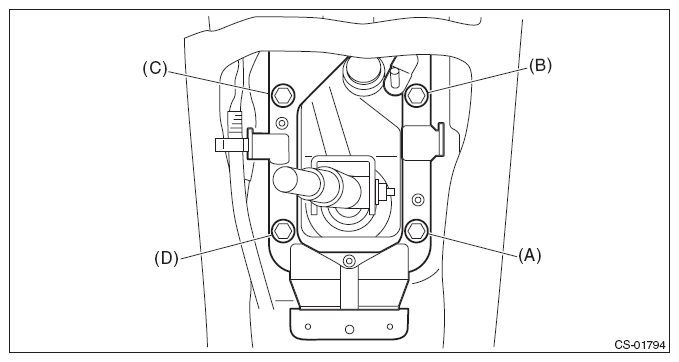

    G10267869Courtesy of SUBARU OF AMERICA, INC.
  10. Install the harness clamp to the plate COMPL.
  11. Install the boot and insulator assembly, and secure with a clamp.
  12. Install the panel center LWR LH and RH. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>INSTALLATION .
  13. Install the cover - shift lever. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>INSTALLATION .
  14. Install the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>INSTALLATION .
  15. Install the gear shift knob by turning it clockwise.
    CAUTION: Do not turn the gear shift knob excessively to prevent it from being damaged.
  16. Make sure the gears can be shifted accurately into each gear.
  17. Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
