Except For STI Model

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe (rear). Refer to EXHAUST(W/O STI)>CENTER EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust cover.
    G12448345Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cable cover plate.
    G10267862Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the MT gear shift cable and MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not twist the cable inner excessively.
    • Do not apply extra overload while holding the part (a).
    G12392870Courtesy of SUBARU OF AMERICA, INC.

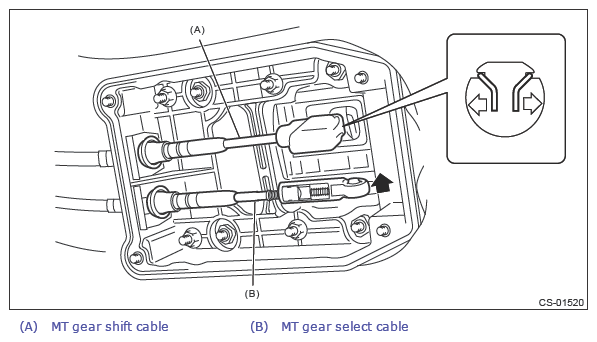

    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.
    G13646825Courtesy of SUBARU OF AMERICA, INC.

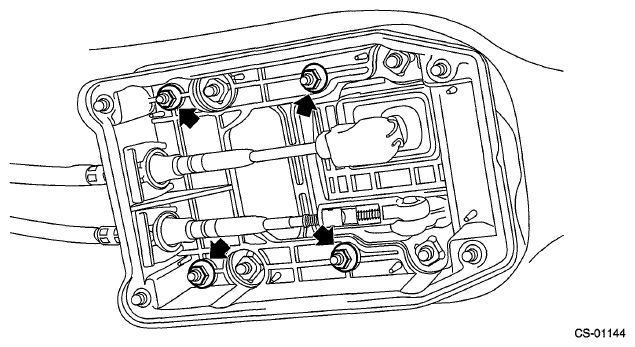

  7. Remove the cable cover assembly.
    G06651771Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  10. Remove the gear shift knob and remove the cover - shift lever. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  11. Remove the panel center LWR LH and RH. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  12. Remove the harness clamp.
  13. Remove the gear shift lever assembly.
    NOTE: The MT gear shift lever cannot be disassembled.
    G09481214Courtesy of SUBARU OF AMERICA, INC.
