Clutch Pedal: Disassembly

Remove the clutch switches.

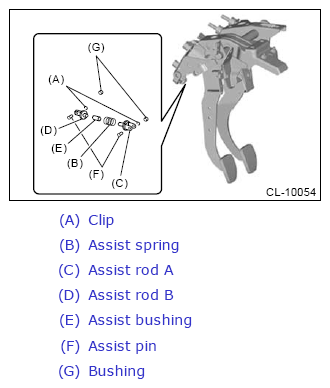

Remove the clip, assist spring, assist rod A, assist rod B, assist bushing, assist pin and bushing.

Courtesy of SUBARU OF AMERICA, INC.

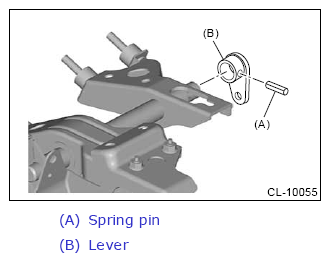

Remove the spring pin and lever.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch pedal and pedal bushings.

Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper and clutch pedal pad.

Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper.

Courtesy of SUBARU OF AMERICA, INC.
