M/T Clutch System: Flywheel: Inspection
CAUTION:
Because the center pilot bearing is grease-sealed and is a non-lubrication type, do not wash with gasoline or solvents.

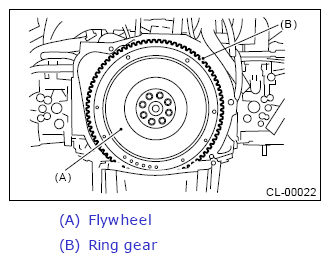

- If there is damage or defectiveness in the facing sliding surface or ring gear, replace the flywheel.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Smoothness of rotation
Rotate the ball bearing while applying pressure in the thrust direction.
- If any noise or excessive play is noted, replace the pilot bearing.
