STI Model

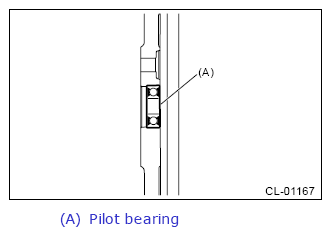

Press in a new pilot bearing to the position where it is flush with the flywheel surface or up to 0.4 mm (0.016 in) deeper than that.
CAUTION: Do not press the bearing inner ring.

Courtesy of SUBARU OF AMERICA, INC.

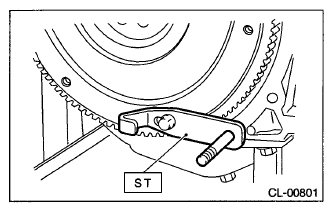

Install the flywheel and ST.

ST 498497100 CRANKSHAFT STOPPER

Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel mounting bolts to the specified torque.
NOTE: Tighten the flywheel attachment bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.

Tightening torque:

75 N.m (7.6 kgf-m, 55.3 ft-lb)

Fig 1: Flywheel Mounting Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and clutch cover. Refer to CLUTCH SYSTEM>CLUTCH DISC AND COVER>INSTALLATION .
Install the transmission assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
