Clutch Assembly

• STI model

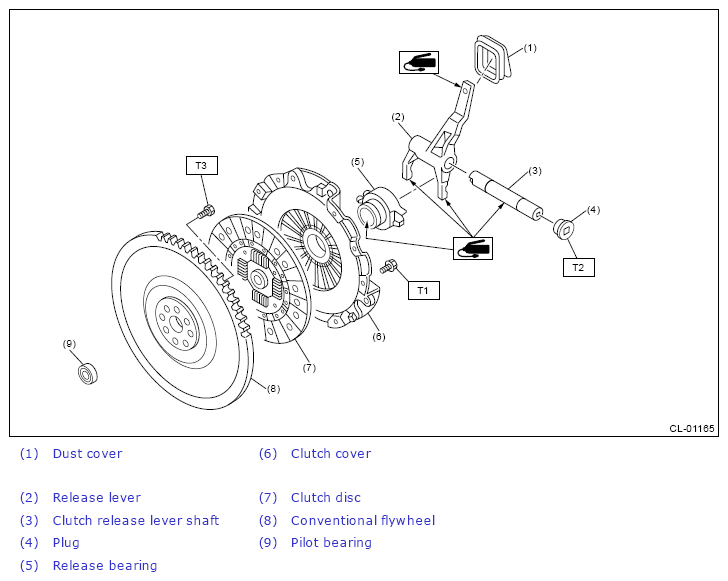

  Fig 1: Clutch Assembly Components (With Torque Specification) (STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 16 (1.6, 11.8)

  T2: 48 (4.9, 35.4)

  T3: 75 (7.6, 55.3)

• Except for STI model

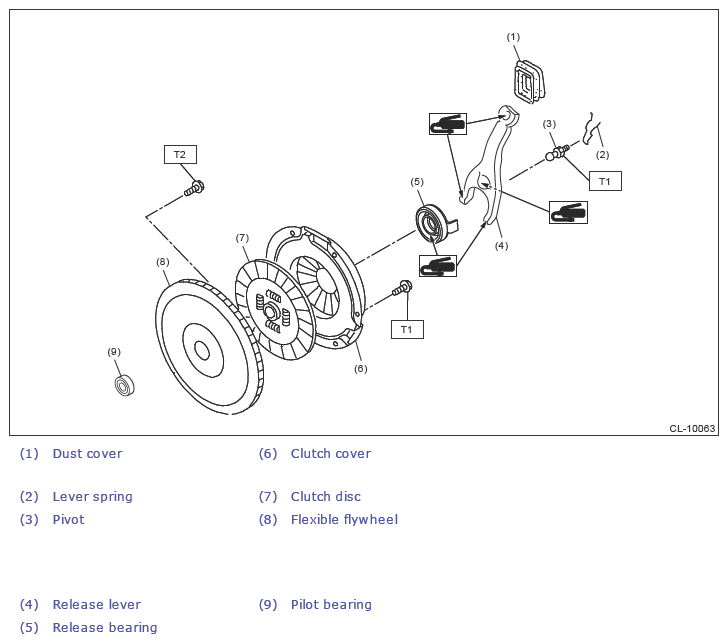

  Fig 2: Clutch Assembly Components (With Torque Specification) (Except For STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2:  Refer to CLUTCH SYSTEM>FLYWHEEL>INSTALLATION>EXCEPT FOR STI MODEL .
