Operating Cylinder
Except for STI model

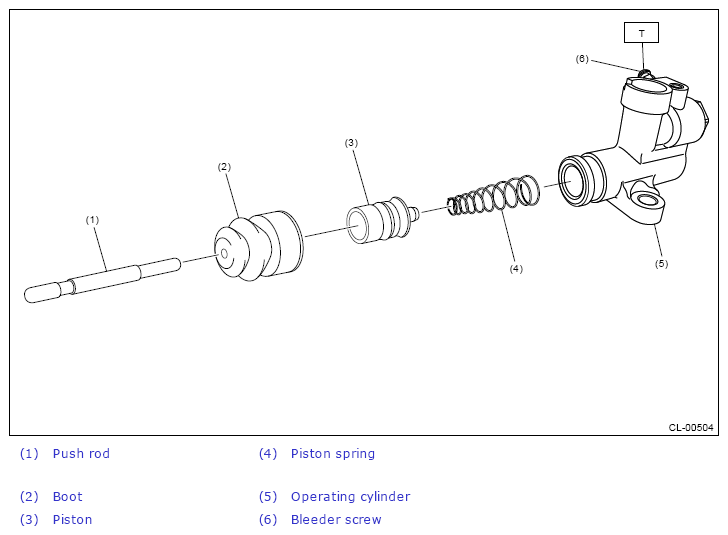

Fig 1: Operating Cylinder Components (With Torque Specification) (Except For STI Model)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.8 (0.8, 5.8)
