Master Cylinder: Inspection

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, reservoir tank, return spring, seat or hose, replace the faulty part.

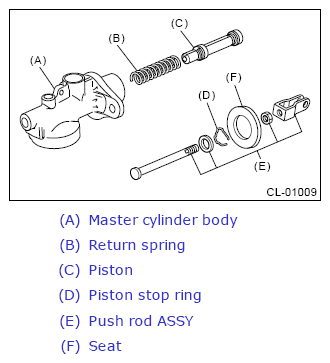

G13647017Courtesy of SUBARU OF AMERICA, INC.
