Operating Cylinder: Disassembly
CAUTION:
Do not disassemble the STI model.
- Remove the boot and push rod.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Apply compressed air through clutch hose attachment hole.
NOTE:
Face the piston hole down and place a piece of wood underneath to prevent the piston from popping out.

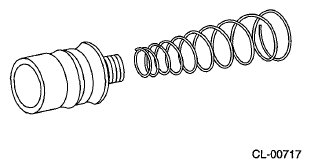

- Separate the piston and piston spring.
 Courtesy of SUBARU OF AMERICA, INC.
|
