Operating Cylinder: Installation

Install in the reverse order of removal.

NOTE:

Use a new gasket.
Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
Grease:

NICHIMOLY N-130 or equivalent

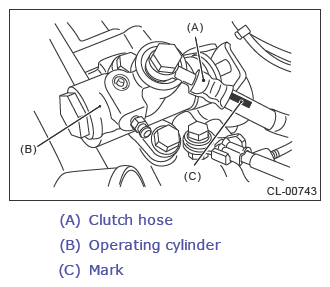

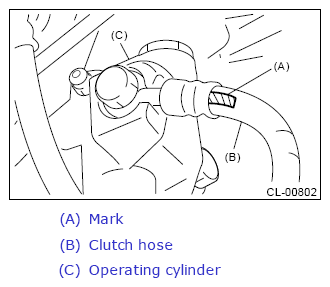

Be sure to install the clutch hose with the mark side facing upward.
Be careful not to twist the clutch hose during installation.

STI model

Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

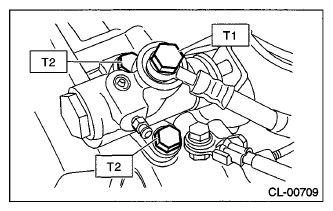

Fig 1: Operating Cylinder Bolts (With Torque Specification) (STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Except for STI model

Tightening torque:

T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

Fig 2: Operating Cylinder Bolts (With Torque Specification) (Except For STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

After bleeding air from the operating cylinder, ensure that the clutch operates properly. Refer to CLUTCH SYSTEM>CLUTCH FLUID AIR BLEEDING .
