Operating Cylinder: Removal
CAUTION:
Brake fluid spilled on the vehicle body will harm the paint surface; therefore, wash it off with water and wipe clean quickly if spilled.
- Disconnect the ground terminal from battery. Refer to NOTE>NOTE>BATTERY
.NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
- Remove the collector cover. (Except for STI model) Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
- Remove the intercooler.
STI model:
Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>REMOVAL .
Except for STI model:
- Remove the starter. (STI model) Refer to STARTING/CHARGING SYSTEMS(STI)>STARTER>REMOVAL .

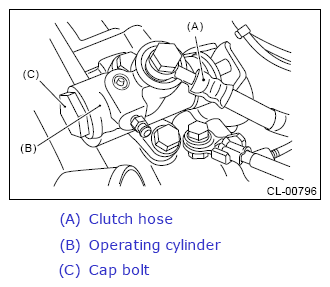

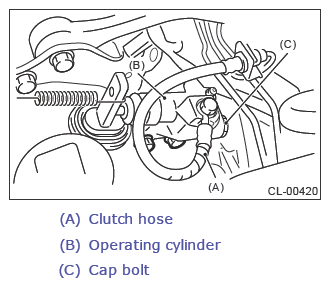

- Disconnect the clutch hose.CAUTION:
- Cover the hose joint to prevent the brake fluid from flowing out.
- Do not loosen or remove the cap bolts.

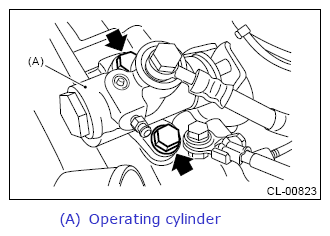

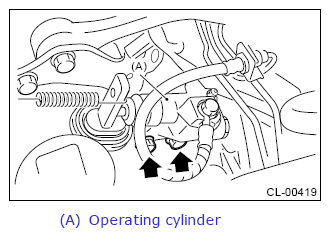

- Remove the operating cylinder.
