M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly.

    6MT (TY75) model:

    Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .

    6MT (TY85) model:

    Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .

  2. Remove the clutch cover and clutch disc. Refer to CLUTCH SYSTEM>CLUTCH DISC AND COVER>REMOVAL .

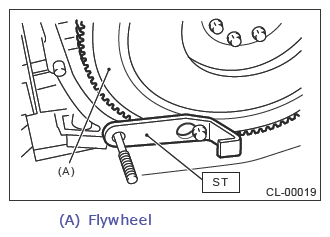

  3. Using the ST, remove the flywheel.
    ST 498497100 CRANKSHAFT STOPPER
    G13646976Courtesy of SUBARU OF AMERICA, INC.
  4. Drive out the pilot bearing from the flywheel.
