Fuel Level Sensor: Installation
Install in the reverse order of removal.
CAUTION:

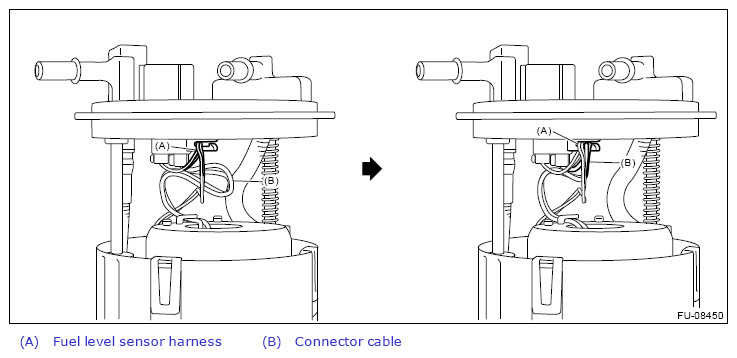

Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.
 Courtesy of SUBARU OF AMERICA, INC.
|
