Fuel Line

• Fuel line 1

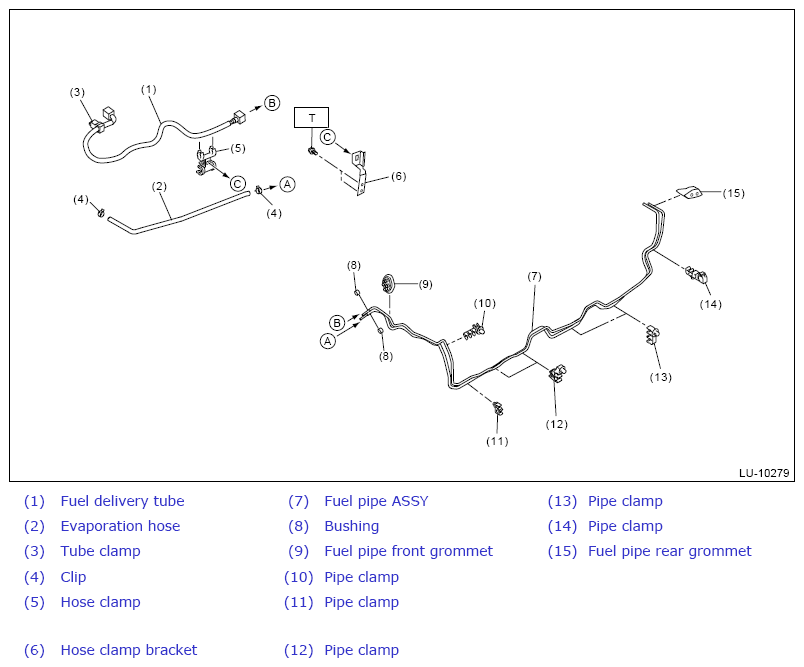

  Fig 1: Fuel Line 1 Components (With Torque Specification)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 7.5 (0.8, 5.5)

• Fuel line 2

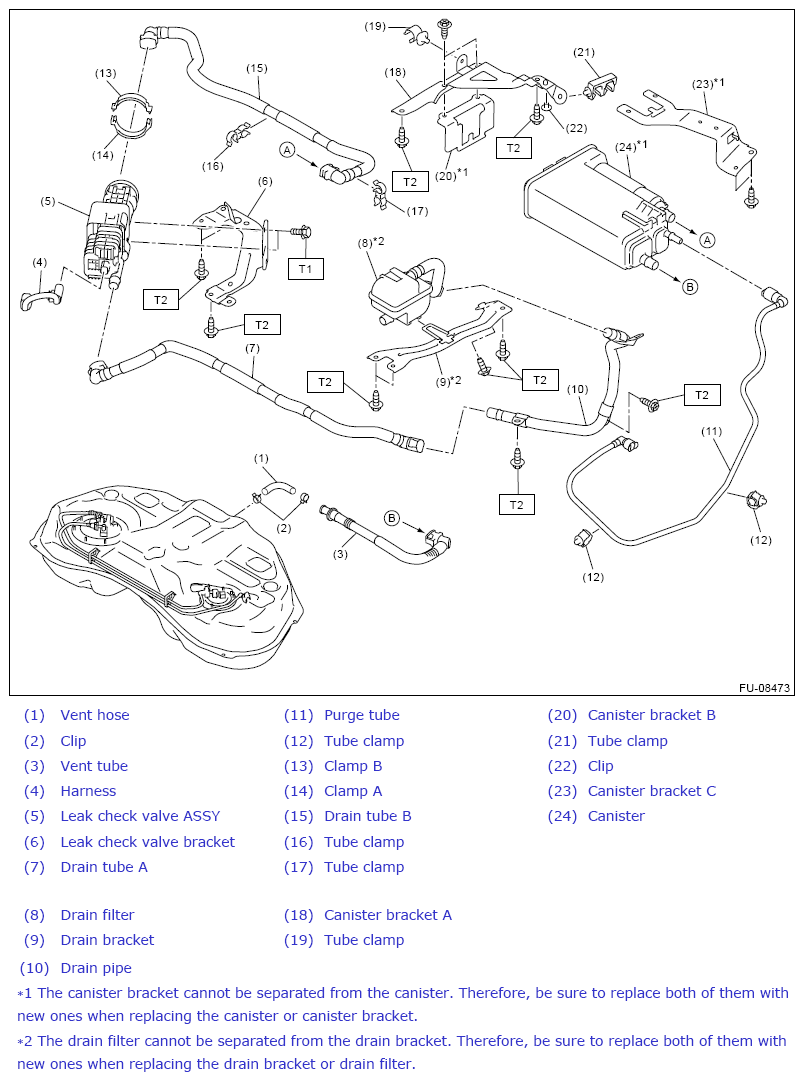

Fig 2: Fuel Line 2 Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 7.5 (0.8, 5.5)
