Fuel Sub Level Sensor: Inspection
- Check that the fuel sub level sensor has no damage.

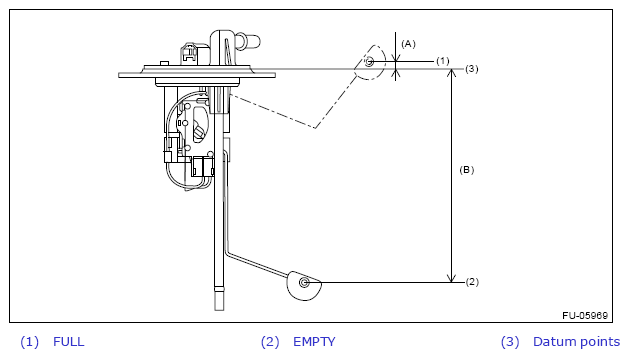

- Measure the fuel sub level sensor float position.
Float position Standard FULL to Datum point (A) 5.31±3.5 mm (0.209±0.138 in) EMPTY to Datum point (B) 160.6±3.5 mm (6.32±0.138 in) - Measure the resistance between fuel sub level sensor terminals.
Float position Terminal No. Standard FULL (A) 1 and 2 8.7±1.0 Ω EMPTY (B) 270.9±4.0 Ω
