Intake Side

• Camshaft position sensor RH

1. Disconnect the ground cable from battery.

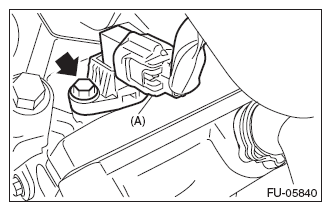

2. Disconnect the connector (A) from the camshaft position sensor RH, and remove the camshaft position sensor RH from the rear side of the cylinder head.

Courtesy of SUBARU OF AMERICA, INC.

• Camshaft position sensor LH

1. Disconnect the ground cable from battery.
2. Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>INTAKE MANIFOLD>REMOVAL .

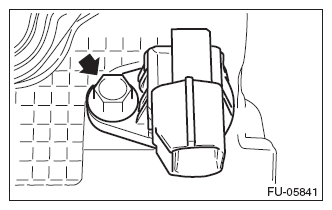

3. Remove the camshaft position sensor LH.

   Courtesy of SUBARU OF AMERICA, INC.
