Crankshaft Position Sensor (Method With Oscilloscope)

  1. Prepare an oscilloscope.
  2. Remove the glove box. Refer to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .

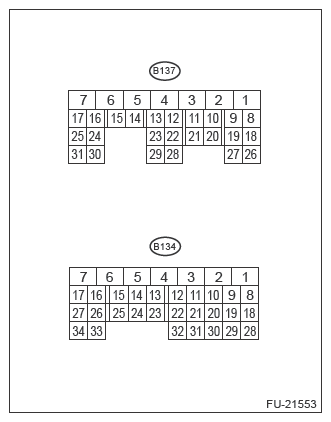

  3. Connect the probe to ECM connector.
    G13640074Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Probe
    (B137) No. 17 +
    (B134) No. 3 -
  4. Start the engine and let it idle.
  5. Check the waveforms and voltage.
    NOTE: For waveform and voltage, refer to "Engine Control Module (ECM) I/O Signal". Refer to ENGINE (DIAGNOSTICS) (STI)>ENGINE CONTROL MODULE (ECM) I/O SIGNAL>ELECTRICAL SPECIFICATION .
  6. After inspection, install the related parts in the reverse order of removal.
