Engine Coolant Temperature Sensor: Removal
- Disconnect the ground cable from battery.
- Remove the generator. Refer to STARTING/CHARGING SYSTEMS(STI)>GENERATOR>REMOVAL .
- Drain engine coolant. Refer to COOLING(STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .

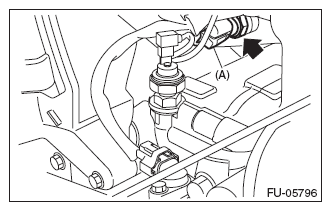

- Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.
