Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .

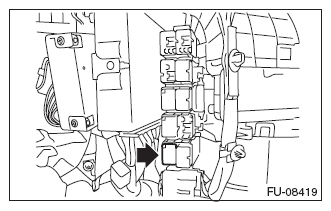

  3. Remove the fuel pump relay from relay block.
    G10264894Courtesy of SUBARU OF AMERICA, INC.
