Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 1: Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover and stopper.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel tank protector. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>FUEL TANK PROTECTOR>INSTALLATION .
Connect the vent tube to the vent hose.

Courtesy of SUBARU OF AMERICA, INC.

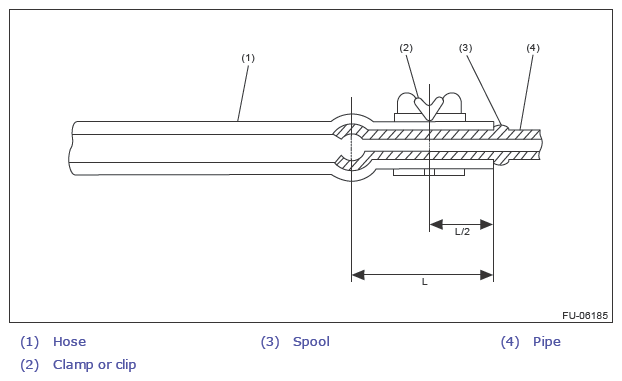

Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear differential. Refer to DIFFERENTIALS>REAR DIFFERENTIAL (T-TYPE)>INSTALLATION .
Install the rear exhaust pipe. Refer to EXHAUST(STI)>REAR EXHAUST PIPE>INSTALLATION .
Connect the quick connector of fuel delivery tube (A) and fuel return tube (B). Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>FUEL DELIVERY, RETURN AND EVAPORATION LINES>INSTALLATION .
NOTE: When connecting, be careful not to reverse the delivery side and return side.

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel sub level sensor.
CAUTION: Before connecting, check that there are no foreign objects, water, etc. in the connectors of the fuel sub level sensor and harness. If any foreign objects and water are found, remove them with air blow and completely dry the connectors to connect.

Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel pump.
CAUTION: Before connecting, check that there are no foreign objects, water, etc. in the connectors of the fuel pump and harness. If any foreign objects and water are found, remove them with air blow and completely dry the connectors to connect.

Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel pump.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Refer to SEATS>REAR SEAT>INSTALLATION .
Connect the battery ground terminal.
