Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

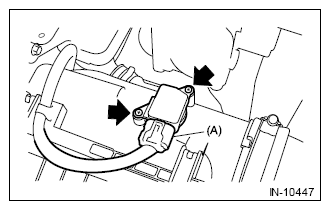

  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.
    G13257418Courtesy of SUBARU OF AMERICA, INC.
