Pressure Regulator & Damper Assembly: Assembly

Install the pressure regulator to the fuel holder assembly, and install the fuel pipe gasket and pulsation damper to the fuel holder assembly.
NOTE:
- Use new O-rings and fuel pipe gaskets.
- Apply a thin coat of engine oil to the pressure regulator installation hole of fuel holder assembly.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 21.6 N.m (2.2 kgf-m, 15.9 ft-lb)

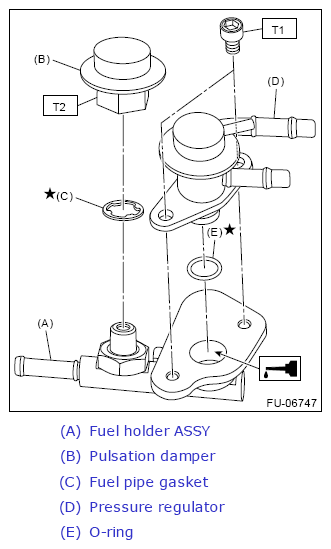

Fig 1: Pressure Regulator, Fuel Pipe Gasket, Pulsation Damper And Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

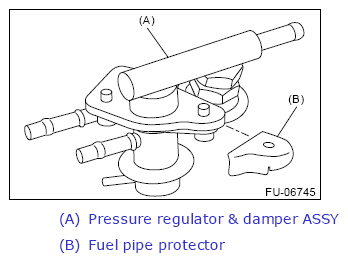

Install the fuel pipe protector to the pressure regulator and damper assembly.

Courtesy of SUBARU OF AMERICA, INC.
