Pulsation Damper Assembly: Removal
WARNING:
Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
- Release the fuel pressure. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .

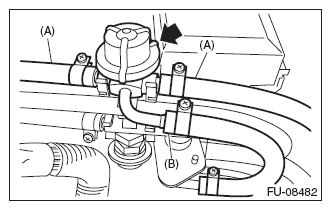

- Disconnect the fuel delivery hose (A) and fuel hose (B) from the pulsation damper assembly, and remove the pulsation damper assembly.
