Wastegate Control Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

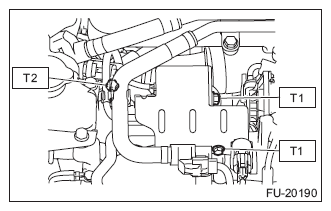

Fig 1: Wastegate Control Solenoid Valve Bolts (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.
