Wastegate Control Solenoid Valve: Removal
- Disconnect the ground cable from battery.

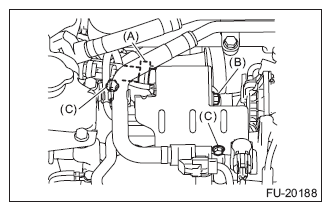

- Remove the vacuum hose from clip (A), and remove the bolt (B) which secures the wastegate control solenoid valve.
- Remove the bolts (C) which secure solenoid valve bracket onto intake manifold.

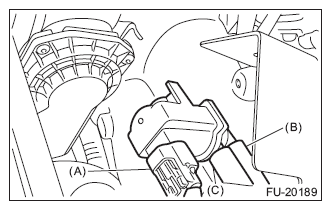

- Disconnect the connector (A) from the wastegate control solenoid valve.
- Disconnect the vacuum hose (B) and air control hose (C) from the wastegate control solenoid valve, and remove the wastegate control solenoid valve.
