RH Side

  1. Disconnect the ground cable from battery.
  2. Remove the air cleaner case. Refer to INTAKE (INDUCTION) (STI)>AIR CLEANER CASE>REMOVAL .

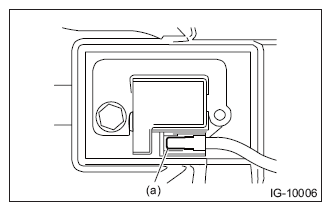

  3. Disconnect the connector from ignition coil.
    CAUTION: Be careful not to damage the claw (a) of the connector.
    G11574057Courtesy of SUBARU OF AMERICA, INC.

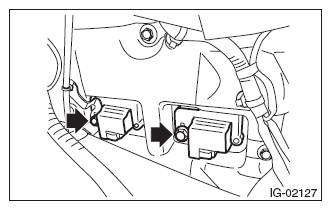

  4. Remove the ignition coil.
    NOTE: Turn the ignition coil by 180° to remove it.
    G08539621Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug with a spark plug socket.
