Drive Cycle Ab

Courtesy of SUBARU OF AMERICA, INC.

WARNING: When performing the drive cycle AB on the public road, be very careful of the traffic condition and the safe driving must be the high priority.

NOTE: Always perform the inspection mode after warming up the engine except when the engine coolant temperature at engine start is specified.

Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
Using the Subaru Select Monitor, perform the clear memory for [Engine].Refer to Read Diagnostic Trouble Code (DTC)

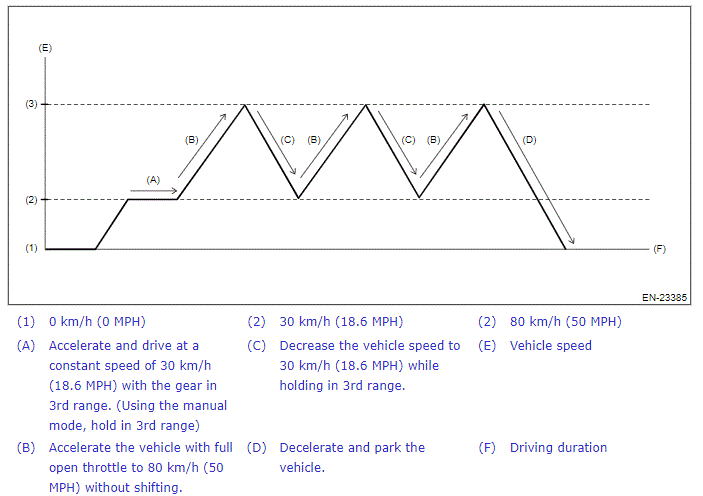

Drive according to the drive pattern described below.

Courtesy of SUBARU OF AMERICA, INC.
Read the temporary code using the Subaru Select Monitor or general scan tool. Refer to Read Diagnostic Trouble Code (DTC)
