Front Exhaust Pipe: Disassembly

  1. Remove the exhaust cover.
    G13199049Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the exhaust stay (A) and turbocharger stay (B), and disconnect turbocharger and center exhaust pipe (front).
    G13199050Courtesy of SUBARU OF AMERICA, INC.

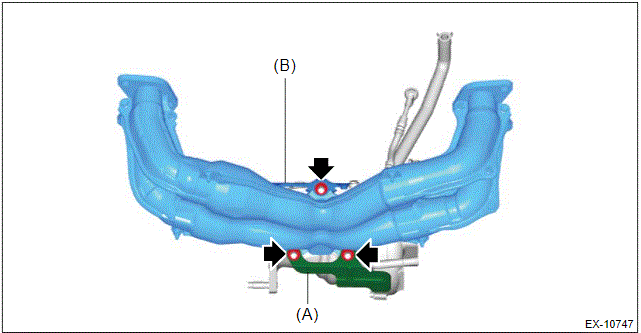

  3. Remove the turbocharger stay (A) and exhaust stay (B), and disconnect turbocharger and front exhaust pipe
    G00608786Courtesy of SUBARU OF AMERICA, INC.

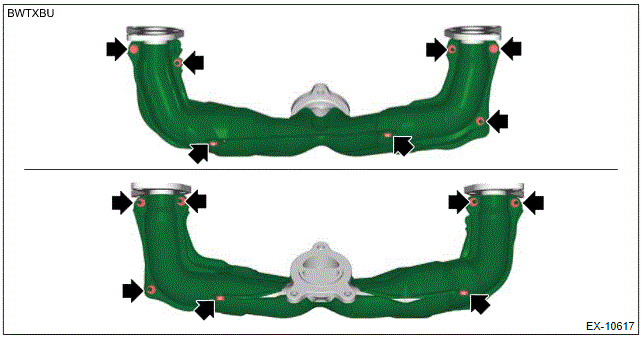

  4. Remove each exhaust cover.
    G00608787Courtesy of SUBARU OF AMERICA, INC.
