CVTF Cooler (With Warmer Function): Disassembly

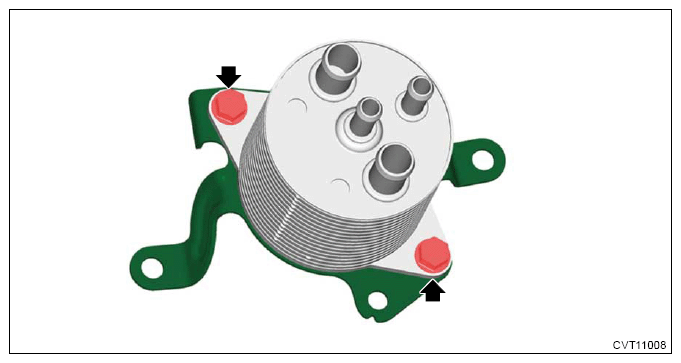

  1. Remove the CVTF cooler bracket.
    G13200078Courtesy of SUBARU OF AMERICA, INC.
