Fuel Pipe

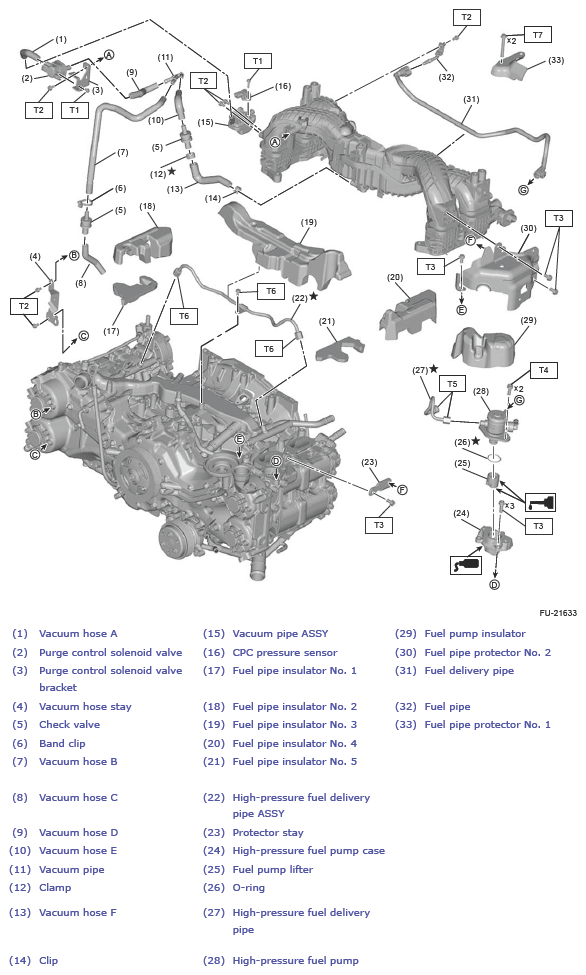

Fig 1: Exploded View Of Fuel Pipe Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 6.4 (0.7, 4.7)

T3: 19 (1.9, 14.0)

T4: 21 (2.1, 15.5)

TS:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE .

T6:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .

T7:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Intake Manifold Assembly>INSTALLATION .
