Fuel Tank 1

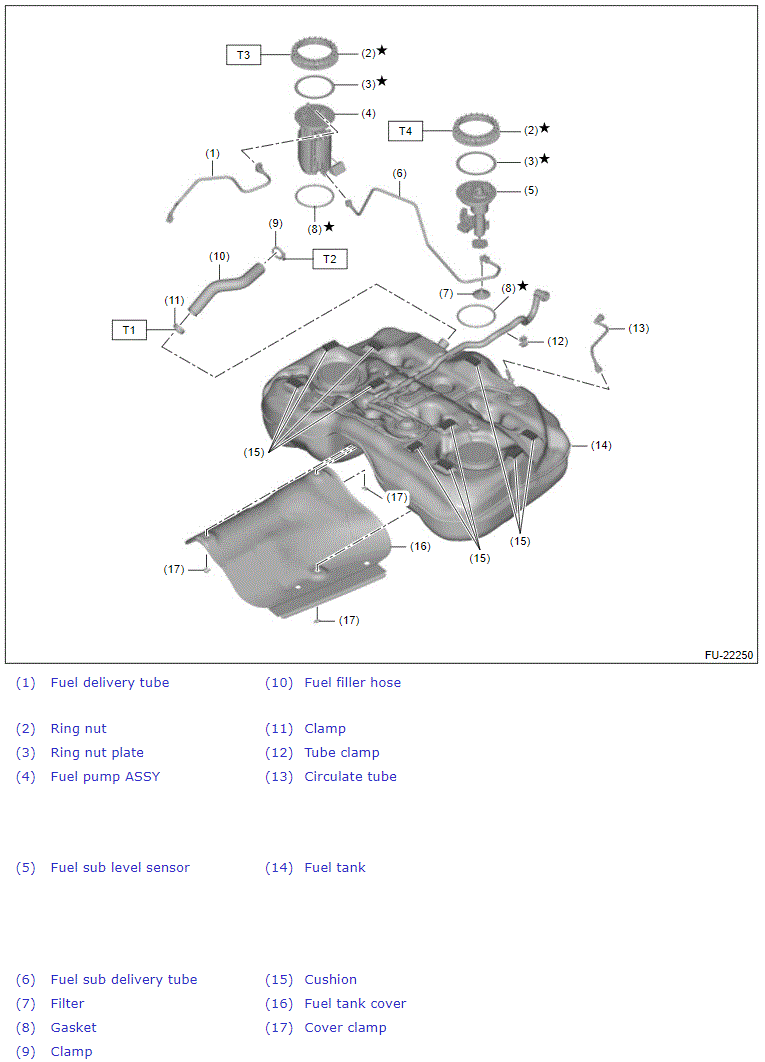

Fig 1: Exploded View Of Fuel Tank Components 1

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.5 (0.3, 1.8)

T3: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Pump> INSTALLATION

T4: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Sub Level Sensor> INSTALLATION  .
