LH Side

  1. Using a claw-foot wrench, install the knock sensor and connect the connector (A).
    NOTE:

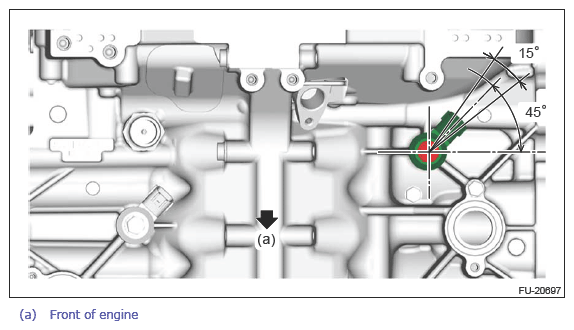

    • Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
    • Make sure that the knock sensor and its connector do not touch the adjacent parts.
    G13866771Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    Calculation formula
    T= 25 N.m (2.5 kgf-m, 18.4ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.
    G12393115Courtesy of SUBARU OF AMERICA, INC.
    1. Effective length of the crowfoot wrench
    2. Effective length of the torque wrench
    3. Center of the open end of crowfoot wrench
    4. Center of drive angle of the torque wrench
    5. Center of the position where a force is applied by hand
    G13198300Courtesy of SUBARU OF AMERICA, INC.
  2. Install the connector (A) and clip (B).
    G13198270Courtesy of SUBARU OF AMERICA, INC.
  3. Install the clip (C), clip (D) and clip (E), and connect connector (A) and connector (B).
    G13198269Courtesy of SUBARU OF AMERICA, INC.
  4. Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
  5. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
