Fuel Filler Cap: Removal

WARNING:

Place "NO OPEN FLAMES" signs near the working area.

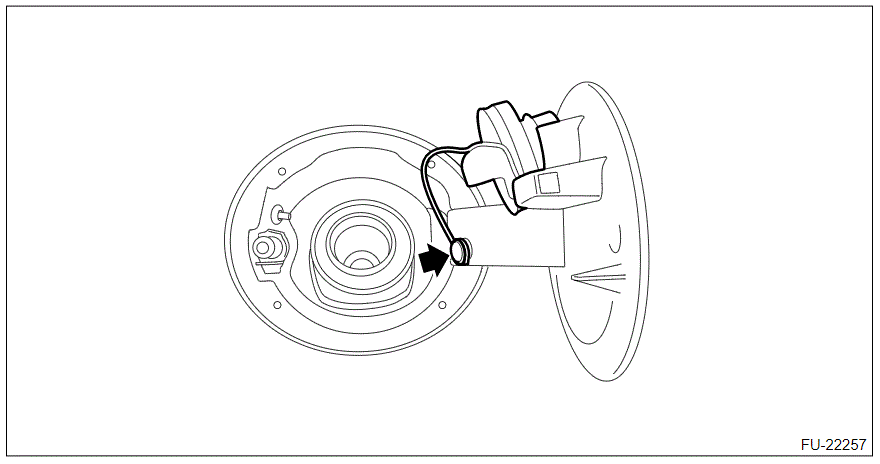

  1. Open the fuel filler lid and remove the fuel filler cap.
  2. Remove the clip and remove the fuel filler cap from the filler lid.
    G00611079
