Oil Pipe

NOTE: The oil pipe is installed only on the model with vacuum pump.

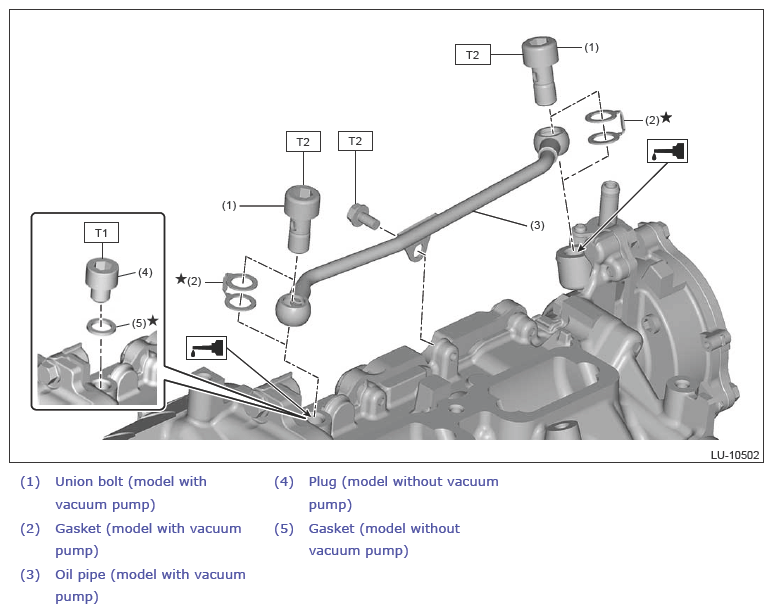

Fig 1: Oil Pipe Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)
