Condition Check

The illumination status of the Auto Start Stop indicator, Auto Start Stop OFF indicator and Auto Start Stop deactivation indicator is related to the vehicle status as follows.

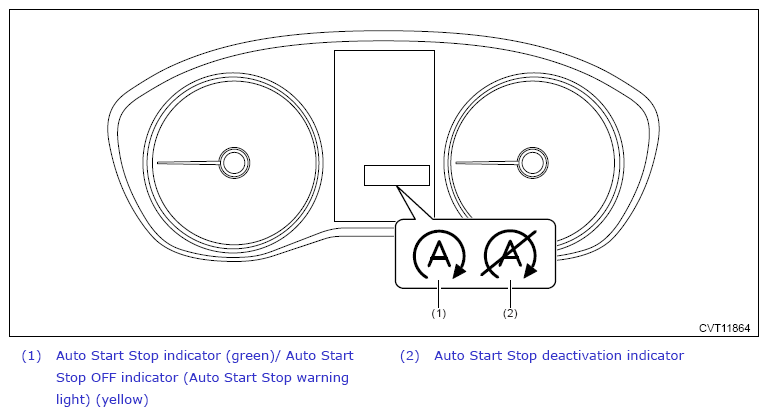

Without multi information display

Courtesy of SUBARU OF AMERICA, INC.

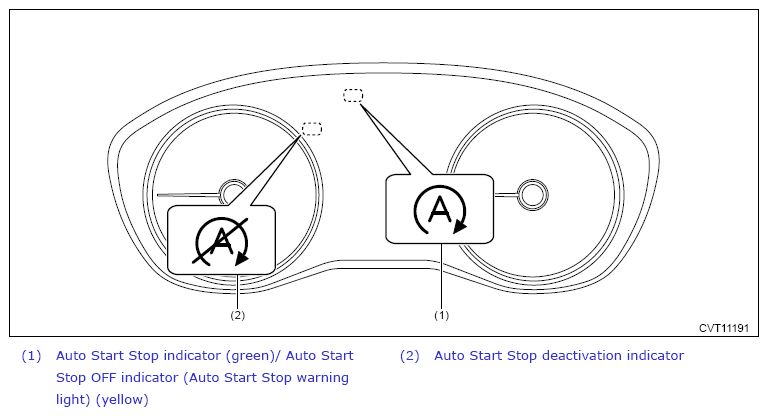

With multi information display

Courtesy of SUBARU OF AMERICA, INC.

Vehicle condition

Ignition switch ON

When Auto Start Stop operation condition is not met

During Auto Start Stop

During Auto Start Stop cancellation⁽¹⁾

Malfunction occurs during Auto Start Stop.

Auto Start Stop indicator status

Light OFF

Light ON (green)

Light OFF

Auto Start Stop OFF indicator status

ON (yellow) ⁽²⁾

Light OFF

Light ON (yellow)

Blink (yellow)

Auto Start Stop deactivation indicator status

Light OFF

Light ON

Light OFF

⁽¹⁾	Following conditions

Auto Start Stop is canceled by operating the Auto Start Stop cancel switch.
The conditions become out of the Auto Start Stop criteria during Auto Start Stop, and the system cannot restart.

⁽²⁾	After engine is started, it goes off.
