Outlet Engine Coolant Temperature Sensor
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Remove the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>REMOVAL .

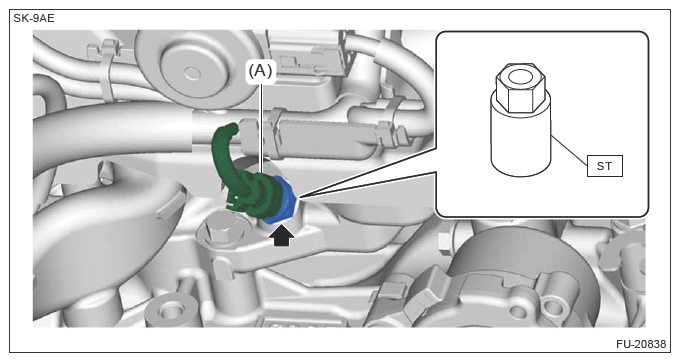

- Disconnect the connector (A) and remove the outlet engine coolant temperature sensor using the ST.NOTE: STRUT MOUNT SOCKET (20099PA000) can also be used.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399AG000)
