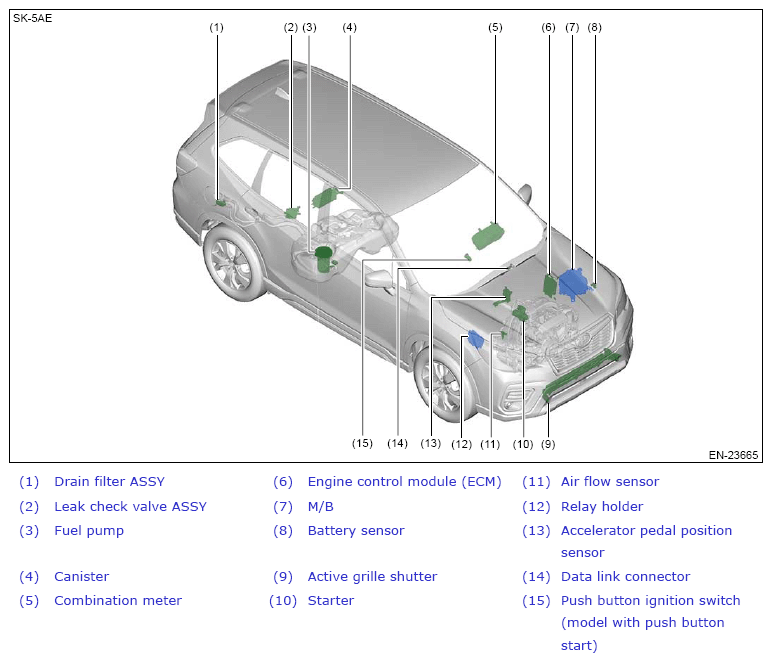

Engine Control System (Diagnostics) - Introduction: Electrical Component Location: Location: Body

G14411993Courtesy of SUBARU OF AMERICA, INC.
