Inspection Mode N

DTC	Description & trouble part	Condition	Number of driving cycles on the detecting condition
P0016	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 1 SENSOR A	[Engine Coolant Temperature 1]: 80°C (176°F) or more	2
P0017	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 1 SENSOR B		2
P0018	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 2 SENSOR A		2
P0019	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 2 SENSOR B		2

WARNING: When performing inspection mode N on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4-8.8 Imp gal)].
Using the Subaru Select Monitor, perform the clear memory of [Engine Control System]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
Check the data in condition column of table by using the Subaru Select Monitor or general scan tool.
NOTE:
- Subaru Select Monitor
  For detailed operation procedures, refer to "Common (Diagnostics)". Ref. to COMMON (DIAGNOSTICS)>DATA MONITOR .
- General scan tool
  For detailed operation procedures, refer to the general scan tool operation manual.

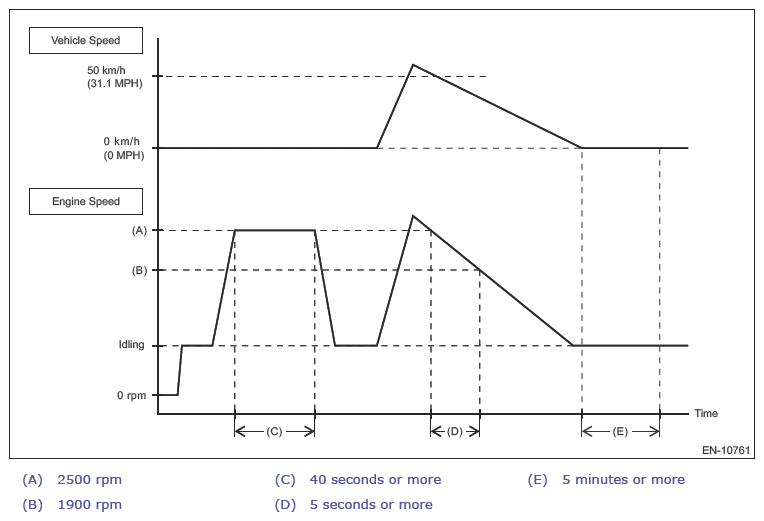

While the conditions in the list are satisfied, race the engine at the speed of approx. 2500 rpm for 40 seconds or more.
Start to move the vehicle, then accelerate the vehicle to vehicle speed 50 km/h (31.1 MPH) or more.
When the speed reaches 50 km/h (31.1 MPH) or more, release the accelerator pedal and brake pedal to decelerate the vehicle without shifting the gear. At this time, select an appropriate gear beforehand so that the engine speed falls within the range from 2500 rpm to 1900 rpm for 5 seconds or more.
NOTE:
- The vehicle speed does not matter so long as the engine speed can maintain from 2500 rpm to 1900 rpm for 5 seconds or more.
  Example: On a downhill grade, it can be performed with a low speed gear and at a low vehicle speed.
- When it is performed with the electrical load such as the air conditioner, etc. turned OFF or the vehicle driven on a downhill grade, the engine speed decreases slowly. Therefore, the continuous time can be maintained easily.
Bring the vehicle to a stop in a safe place, and idle it for 5 minutes or more.
NOTE: Driving method while vehicle is driven to a stop at safe place is not restricted.
Read the readiness code of [Engine Control System] using Subaru Select Monitor and check that the concerned self-diagnosis is completed. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>ALL READINESS DIAGNOSTIC CODE(S) .
With the vehicle idling, read the pending code of DTC using Subaru Select Monitor or general scan tool.
NOTE:
- For detailed operation procedures, refer to "Common (Diagnostics)". Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
- If the DTC is not displayed on the Subaru Select Monitor or general scan tool display screen, the trouble is resolved.
Courtesy of SUBARU OF AMERICA, INC.
