Select Cable: Adjustment

Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".

Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust cover. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .
NOTE: Remove the center exhaust cover only.

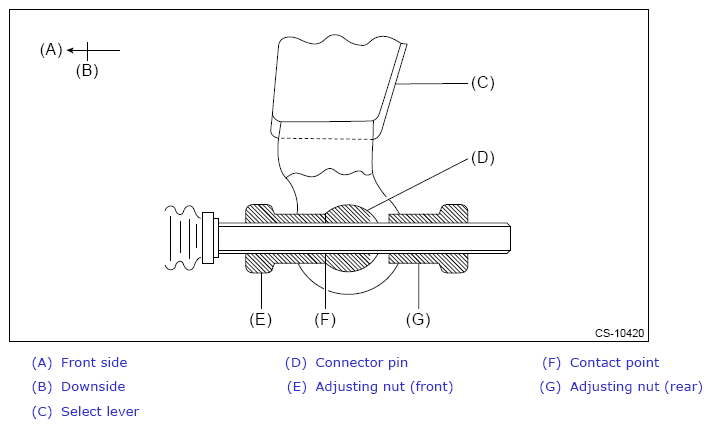

Loosen the adjusting nut (front) and adjusting nut (rear).

Courtesy of SUBARU OF AMERICA, INC.
Turn the adjusting nut (front) until it lightly touches the connector pin.

Courtesy of SUBARU OF AMERICA, INC.
While holding the adjusting nut (front) in place, tighten the adjusting nut (rear).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
