Engine Oil Temperature Sensor: Removal
CAUTION:
If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

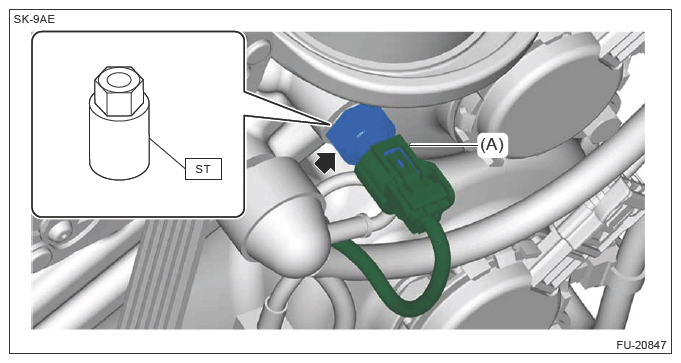

- Disconnect the connector (A), and remove the engine oil temperature sensor from the chain cover using the ST.NOTE: STRUT MOUNT SOCKET (20099PA000) can also be used.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399AG000)
