Fuel Tank: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the tubes using a container or cloth.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the rear seat cushion. Ref. to SEATS>REAR SEAT>REMOVAL .
  5. Remove the service hole cover of fuel pump.
    G13224005Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector from fuel pump.
    G12391528Courtesy of SUBARU OF AMERICA, INC.

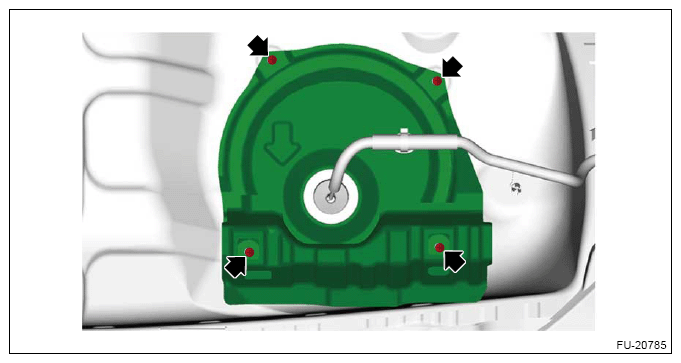

  7. Remove the service hole cover of fuel sub level sensor.
    G13224007Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the connector from the fuel sub level sensor.
    G12391530Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.
  10. Remove the fuel tank protector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK PROTECTOR>REMOVAL .
  11. Remove the rear exhaust pipe and muffler as a single unit.

    Rear exhaust pipe:

    Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

    Muffler:

    Ref. to EXHAUST (H4DO)>MUFFLER>REMOVAL .

  12. Remove the rear differential. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VA-TYPE)>REMOVAL .

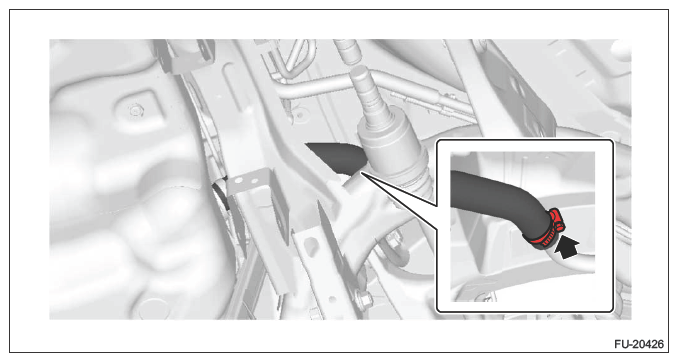

  13. Disconnect the fuel filler hose from the fuel filler pipe assembly.
    G13224009Courtesy of SUBARU OF AMERICA, INC.

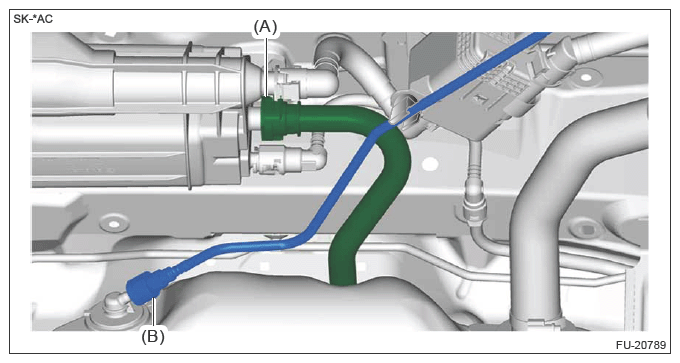

  14. Disconnect the vent tube (A) from the canister. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .
  15. Disconnect the circulate tube (B) from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .
    G13224010Courtesy of SUBARU OF AMERICA, INC.

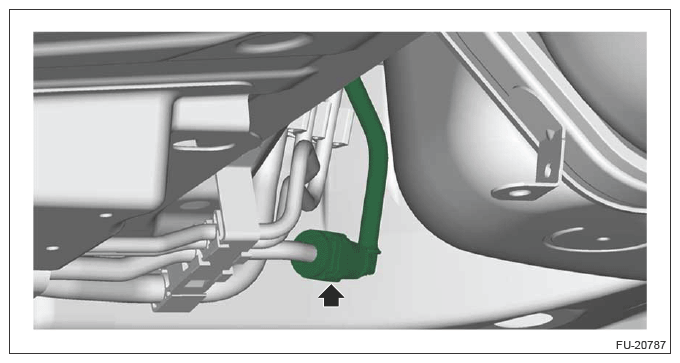

  16. Disconnect the fuel delivery tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .
    G13224011Courtesy of SUBARU OF AMERICA, INC.

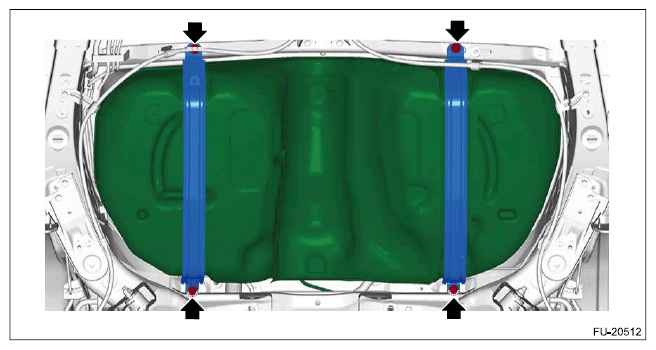

  17. Support the fuel tank with a transmission jack, remove the bolts from the fuel tank band, and remove the fuel tank from the vehicle.
    CAUTION:
    • A helper is required to perform this work.
    • Fuel may remain in the fuel tank. This will cause the left and right sides to be unbalanced. Be careful not to drop it.
G12391534Courtesy of SUBARU OF AMERICA, INC.
