Engine Wiring Harness

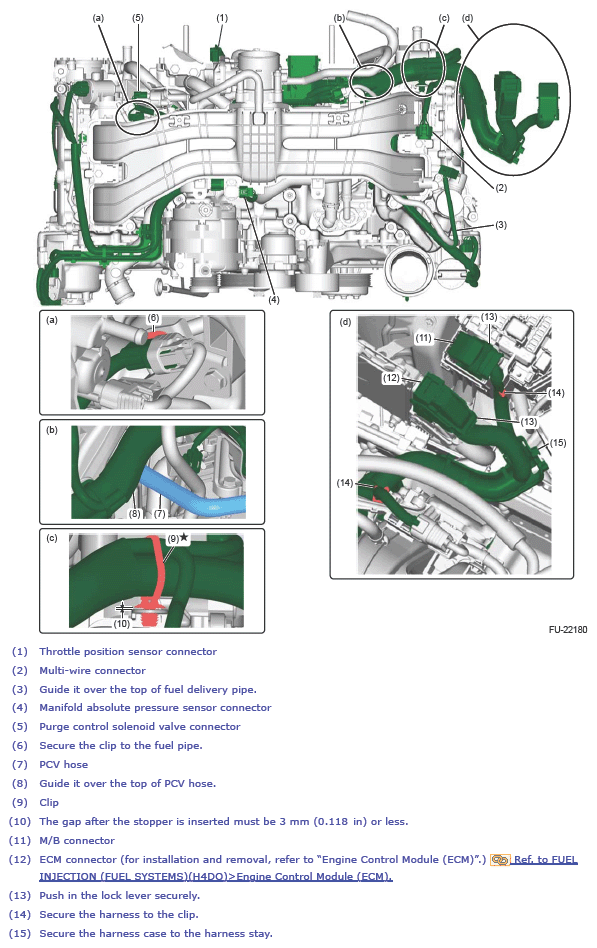

Structural diagram 1
Courtesy of SUBARU OF AMERICA, INC.

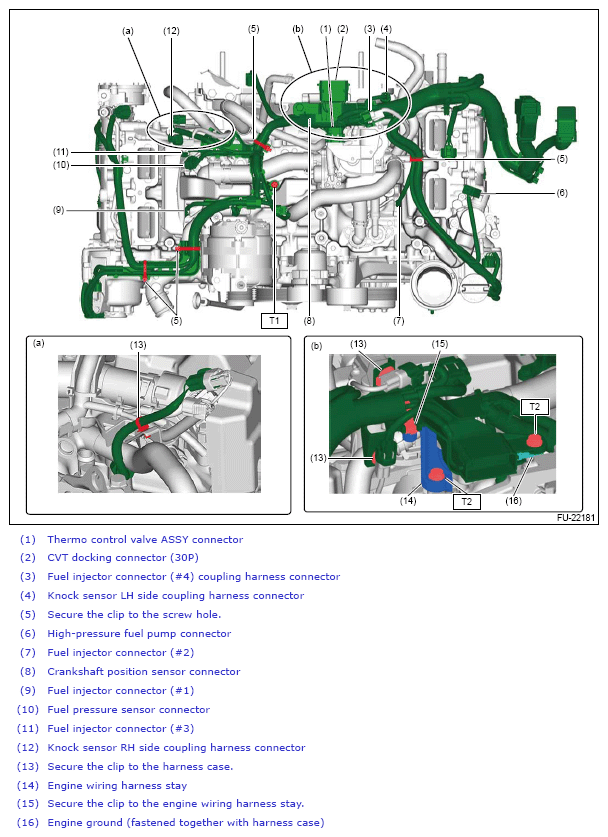

Structural diagram 2
Fig 1: Engine Wiring Harness Components (With Torque Specifications) - Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 19 (1.9, 14.0)

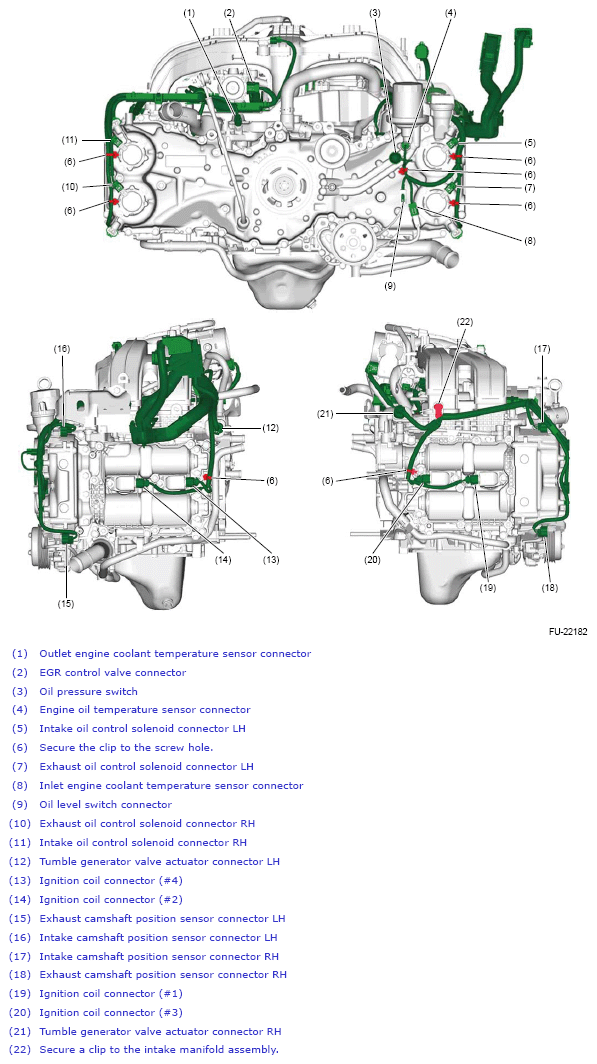

Structural diagram 3
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
