Knock Sensor: Inspection

  1. Check that the knock sensor has no deformation, cracks or other damages.

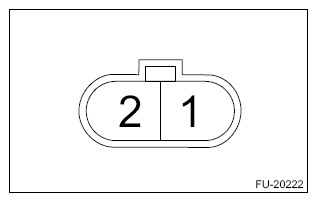

  2. Measure the resistance between knock sensor terminals.
G13947217Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 560±28 kΩ
