Select Cable: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL
  3. Remove the center exhaust cover.

    H4DO model:

    Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

    H4DOTC model:

    Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .

  4. Disconnect the select cable from the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.

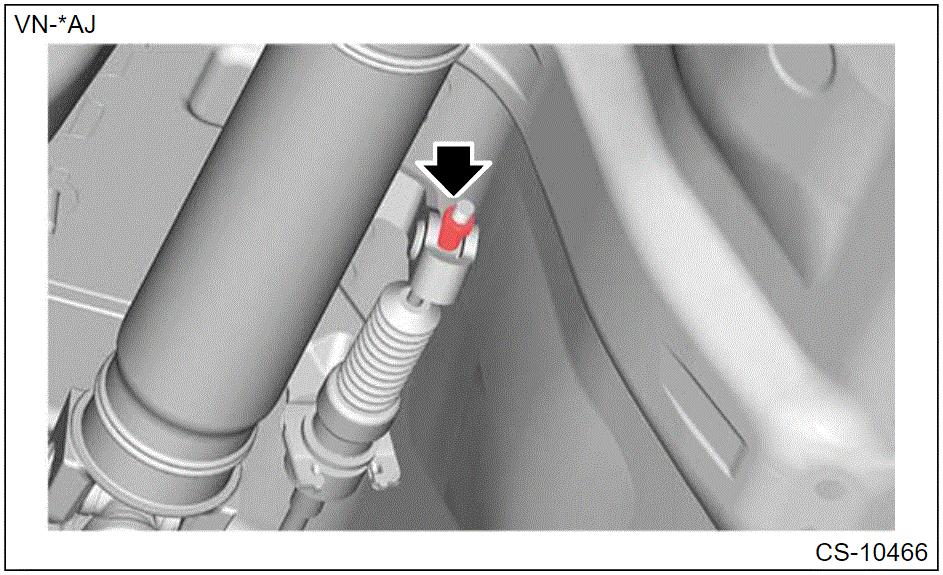

  5. Remove the adjusting nut (rear).
    G00608677Courtesy of SUBARU OF AMERICA, INC.

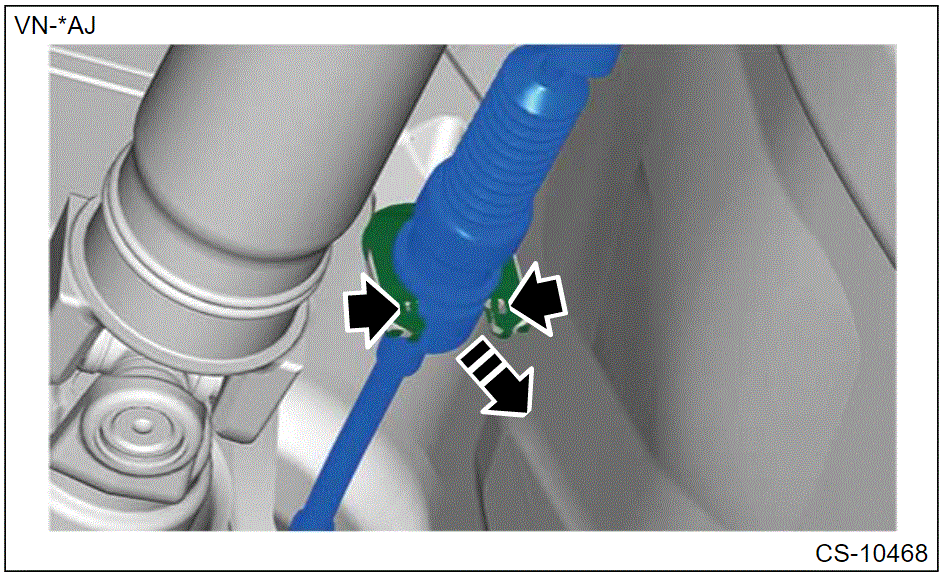

  6. Raise the claw of clamp and remove the select cable together with the clamp.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591854Courtesy of SUBARU OF AMERICA, INC.
    G00608678Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the clamp from the select cable.
  8. Remove the cable plate.
    G13225512Courtesy of SUBARU OF AMERICA, INC.
