Fuel Pump Assembly: Inspection
- Check that the fuel pump has no deformation, cracks or other damages.

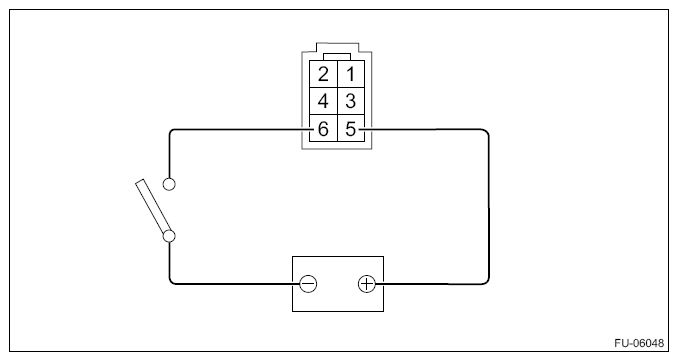

- Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal No. 6, and inspect the fuel pump operation.
WARNING:
- Wipe off fuel completely.
- Keep the battery as far apart from fuel pump as possible.
- Do not run the fuel pump for a long time under non-load condition.
