Fuse Installation
At shipping
NOTE:

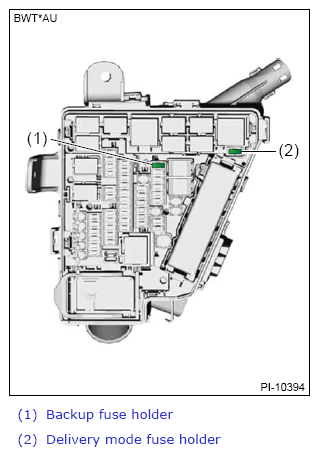

- Delivery mode fuse (30 A) is installed to the position (2) to prevent the battery consumption.
- Installing the delivery mode fuse to the position (2) activates the control during shipping (delivery mode).
After shipping (immediately after the vehicle is delivered)
- Remove the delivery mode fuse from the position (2).
- Install the delivery mode fuse to the position (1).CAUTION:
If the delivery mode fuse is removed from the position (1), the DTC related to the center information display (CID) is recorded. Be sure to clear the memory after installing the delivery mode fuse to the position (1).
NOTE:- Removing the delivery mode fuse from the position (2) deactivates the control during shipping (delivery mode).
- Park the vehicle on a level ground before performing this procedure.
- When the vehicle is delivered, the delivery mode fuse is normally placed in the position (2) as shown in the figure. However, if placed in the position (1), it may indicate that the headlight beam is deviated. In this case, perform the following procedures.
- Park the vehicle on a level ground.
- Turn the ignition switch to OFF and remove the delivery mode fuse from the position (1).
- Install the delivery mode fuse in the position (2) and then turn the ignition switch to ON.
- Turn the ignition switch to OFF, install the delivery mode fuse in the position (1), and start the engine.
