Crankshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL

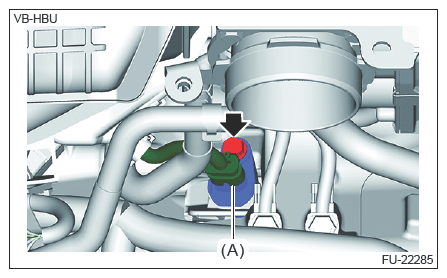

  3. Disconnect the connector (A) and remove the crankshaft position sensor.
    G14601015Courtesy of SUBARU OF AMERICA, INC.
