Fuel Pipe 1

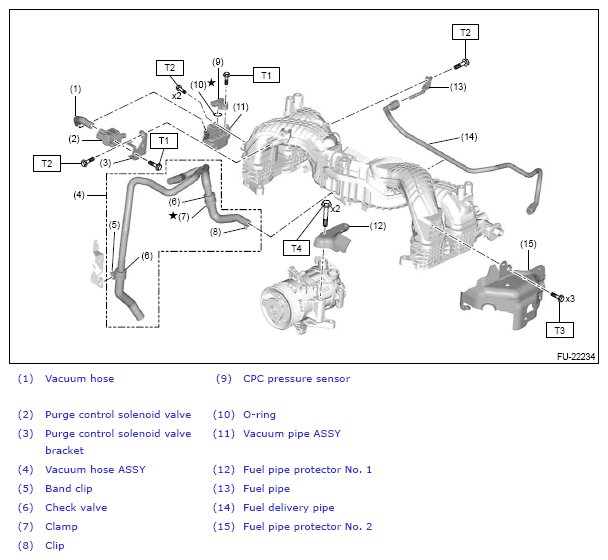

Fig 1: Fuel Pipe 1 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 6.4 (0.7, 4.7)

T3: 19 (1.9, 14.0)

T4: 25 (2.5, 18.4)
